Grayscale Transition Without Saturation in URP Shader Graph

·2 min read

Playing with Shader Graph, I wanted to build a grayscale transition by hand. Simple goal: take one texture, slide between full color and black-and-white with a single slider. Could have used the Saturation node directly, but I wanted to see how it works underneath.

Problem

Required behavior:

  • One texture input.
  • Slider at 0: fully grayscale.
  • Slider at 1: original color.
  • Smooth interpolation in between.

Saturation node does this out of the box. Still wanted to confirm how grayscale is actually constructed.

Solution

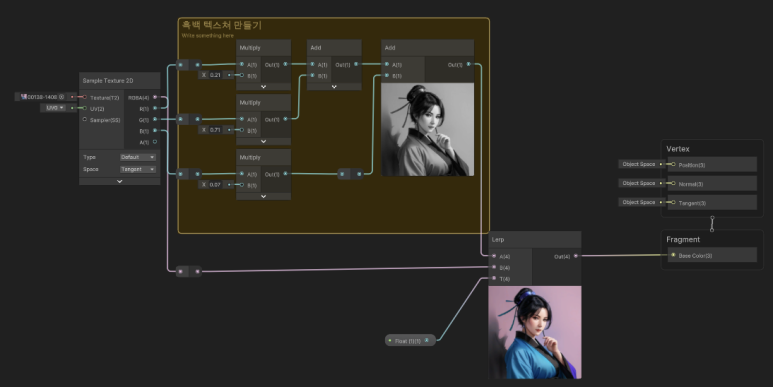

Shader Graph

Two steps:

  1. Convert original color to a grayscale value.
  2. Lerp between grayscale and original.

Grayscale isn't equal-weight RGB. Human perception weights channels differently for a natural-looking result:

gray = R * 0.21 + G * 0.71 + B * 0.07

Spread that gray across all three RGB channels for a grayscale color. Then apply Lerp(A, B, T):

  • A: grayscale
  • B: original color
  • T: 0–1 slider value

In shader terms, one line:

result = lerp(grayscaleColor, originalColor, t)

Why this way

The upside is simple debugging:

  • Grayscale conversion wrong?
  • Interpolation value wrong?
  • Final output wrong?

Each part isolates cleanly. Using the Saturation node directly is faster, but building it once makes "grayscale transition = grayscale generation + interpolation" stick clearly.

Notes

The lasting takeaway is a thinking pattern, not a technique. For simple effects like this, understanding "transform the original into some intermediate form, then blend the two" outlasts memorizing a node name.

When building similar effects:

  • First create the intermediate representation. Here: grayscale.
  • Blend it with the original via Lerp.
  • Attach a slider or mask for control range.
